Standing Seam Systems

Snow Retention for Standing Seam Metal Roofs

Non-penetrating, clamp-on snow retention built to follow the seam without piercing the panel, so the roof's weathertightness stays intact.

Calculate My System Get Instant Quote

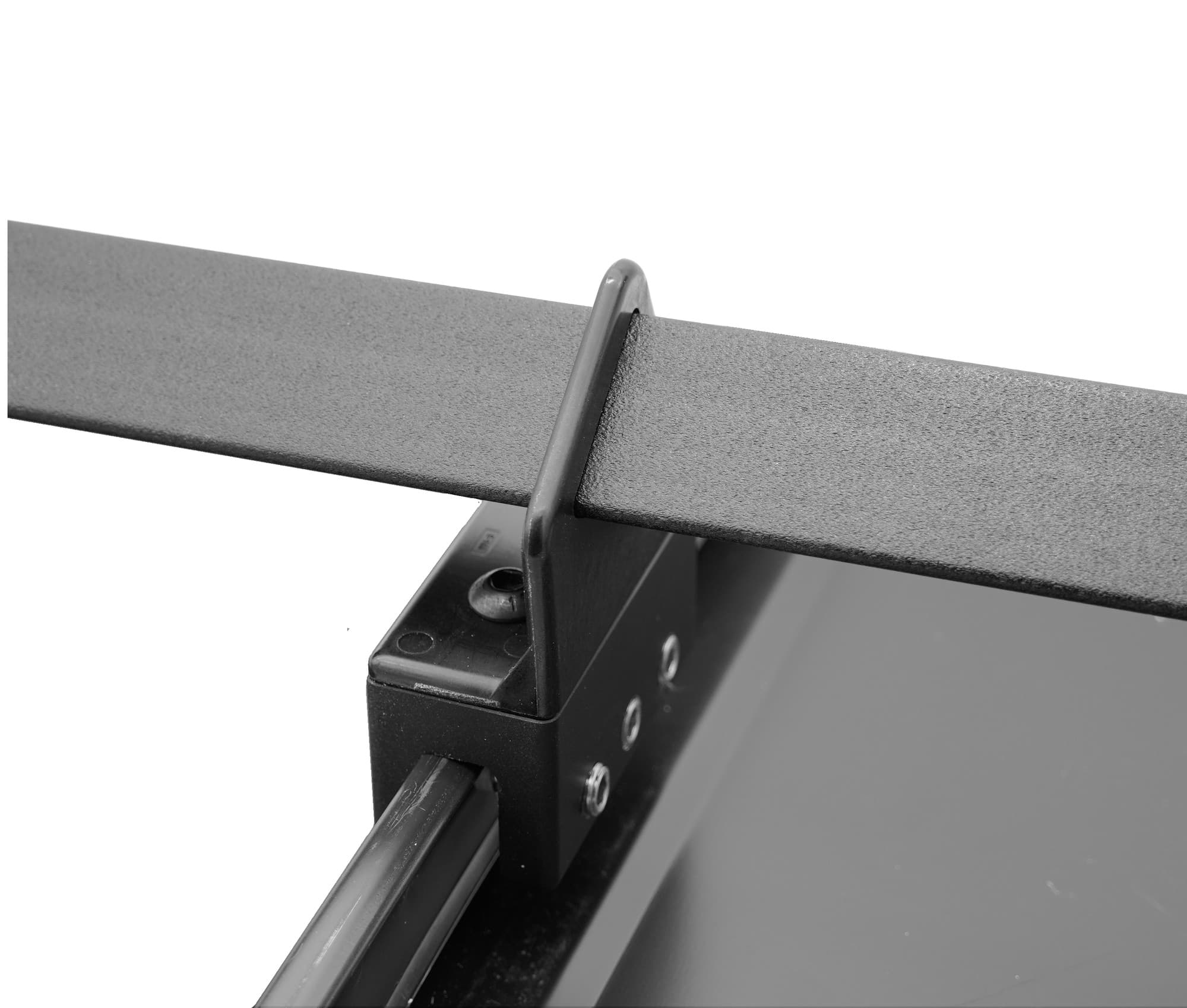

ArcticAnchor non-penetrating clamp installed on a standing seam metal roof panel

Standing Seam Advantages

Why Roofers Choose This System

Non-penetrating attachment
Clamp-on hardware is designed to grip the seam without piercing the panel, helping preserve the roof's weathertightness.
Lightweight TitanCore material
Components use TitanCore, an engineered polymer intended to reduce weight and handling difficulty on the roof.
Corrosion-resistant by design
TitanCore does not rust, which is intended to reduce long-term maintenance concerns compared to some traditional metal hardware.
Continuous rail layout
Rail-based layouts are designed to help distribute snow retention along the eave rather than relying on isolated stop points.

Complete System

The Full Rail Series, Assembled

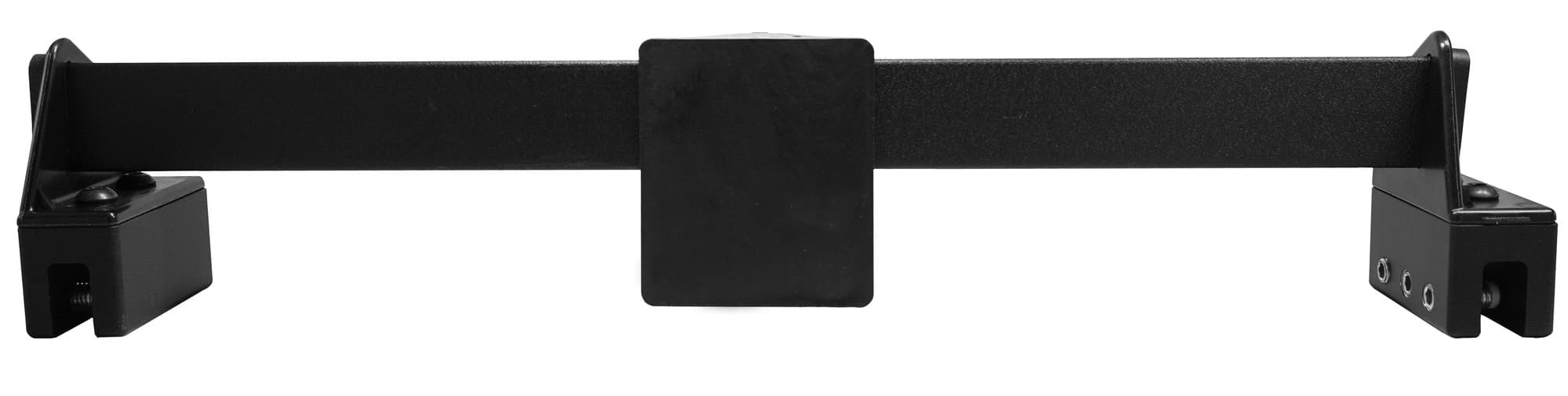

A complete Standing Seam Rail Series run, showing the clamp-to-clamp assembly along the eave.

Complete ArcticAnchor Standing Seam Rail Series system assembled, showing clamps at both ends connected by the continuous rail

Standing Seam Details

Built-In Details That Make the Difference

A closer look at the details engineered into the Standing Seam Rail Series, added here as photos come in from the product team.

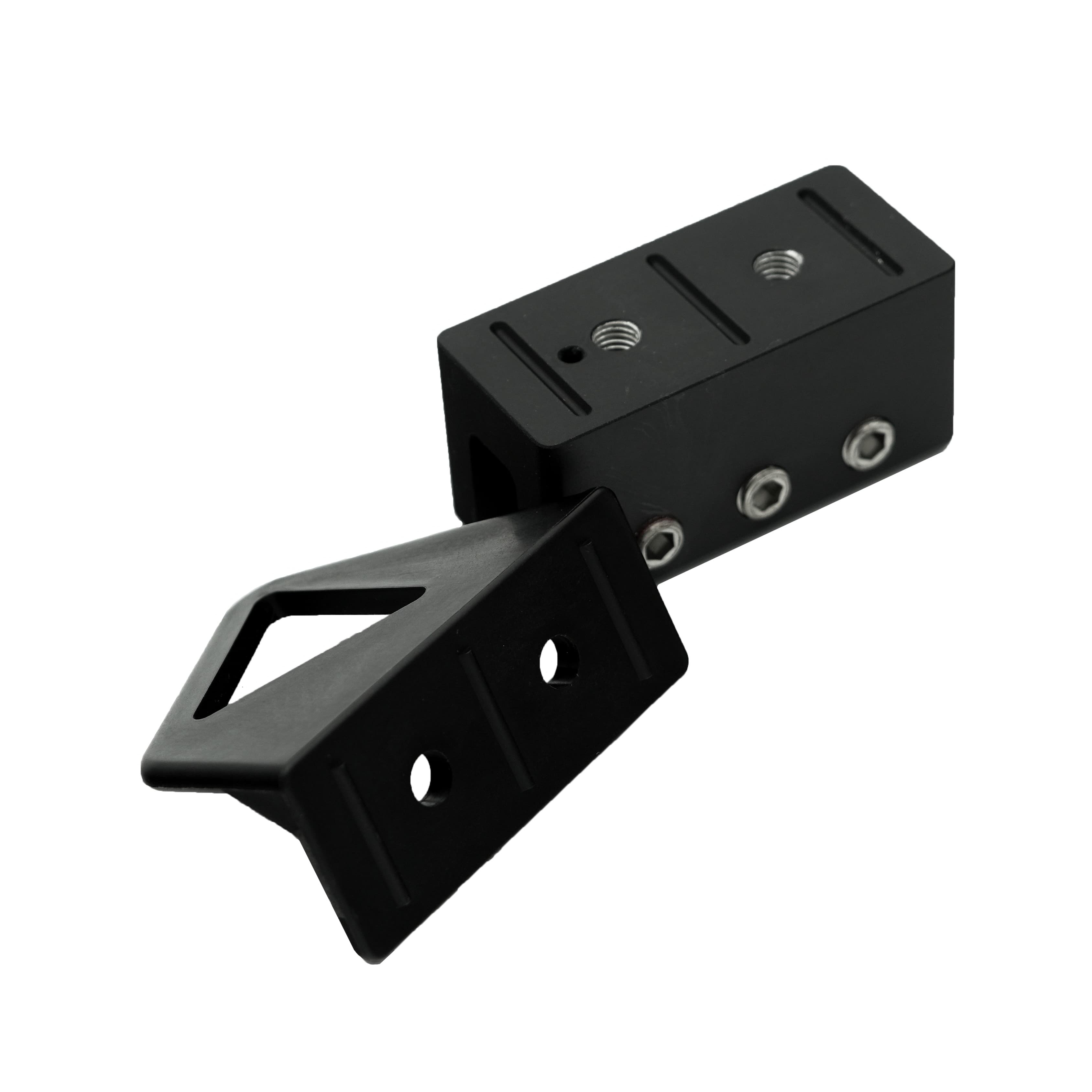

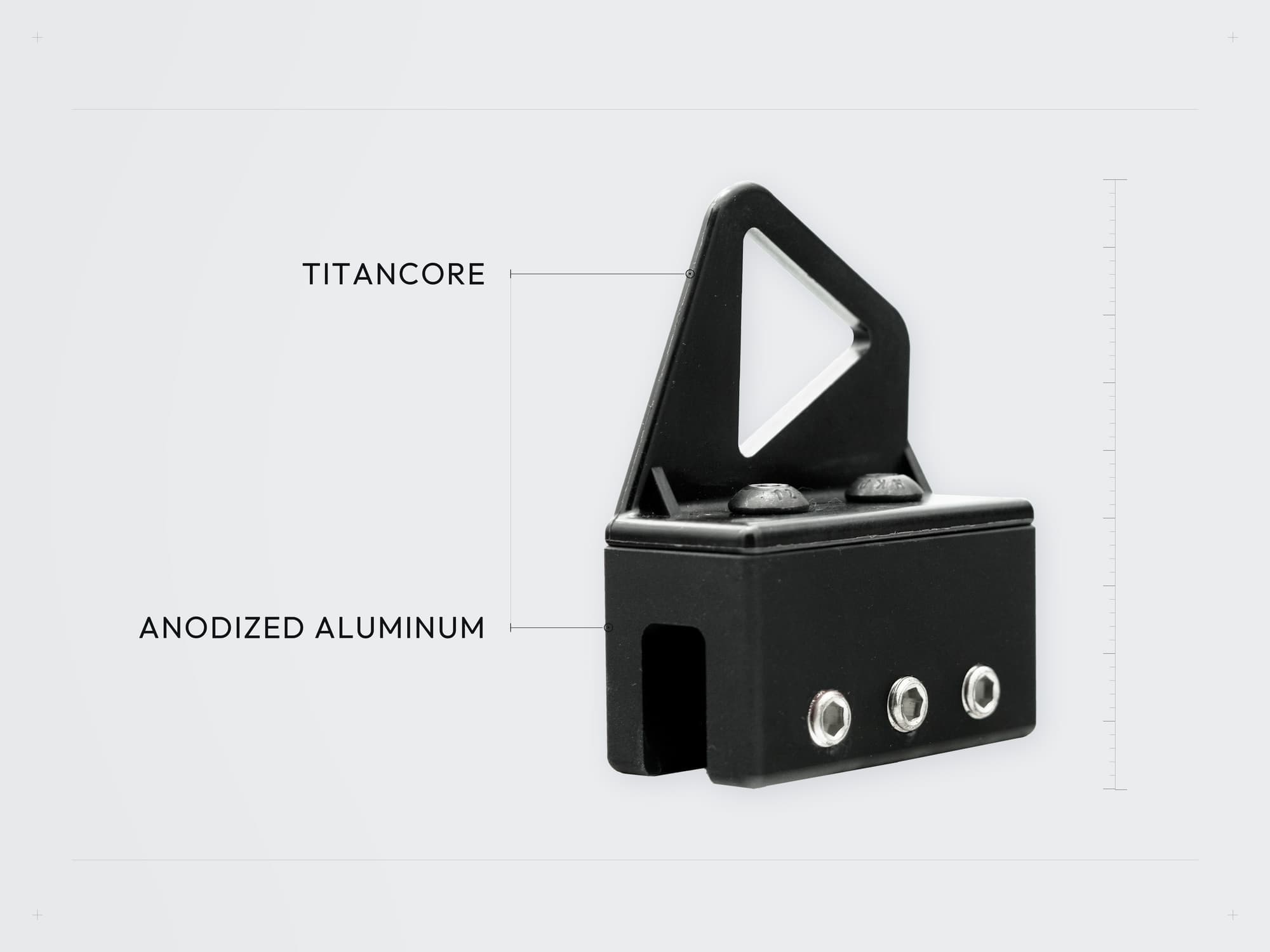

ArcticAnchor standing seam clamp bracket in anodized aluminum with a TitanCore reinforced arm, non-penetrating attachment hardware

Seam Clamp Design

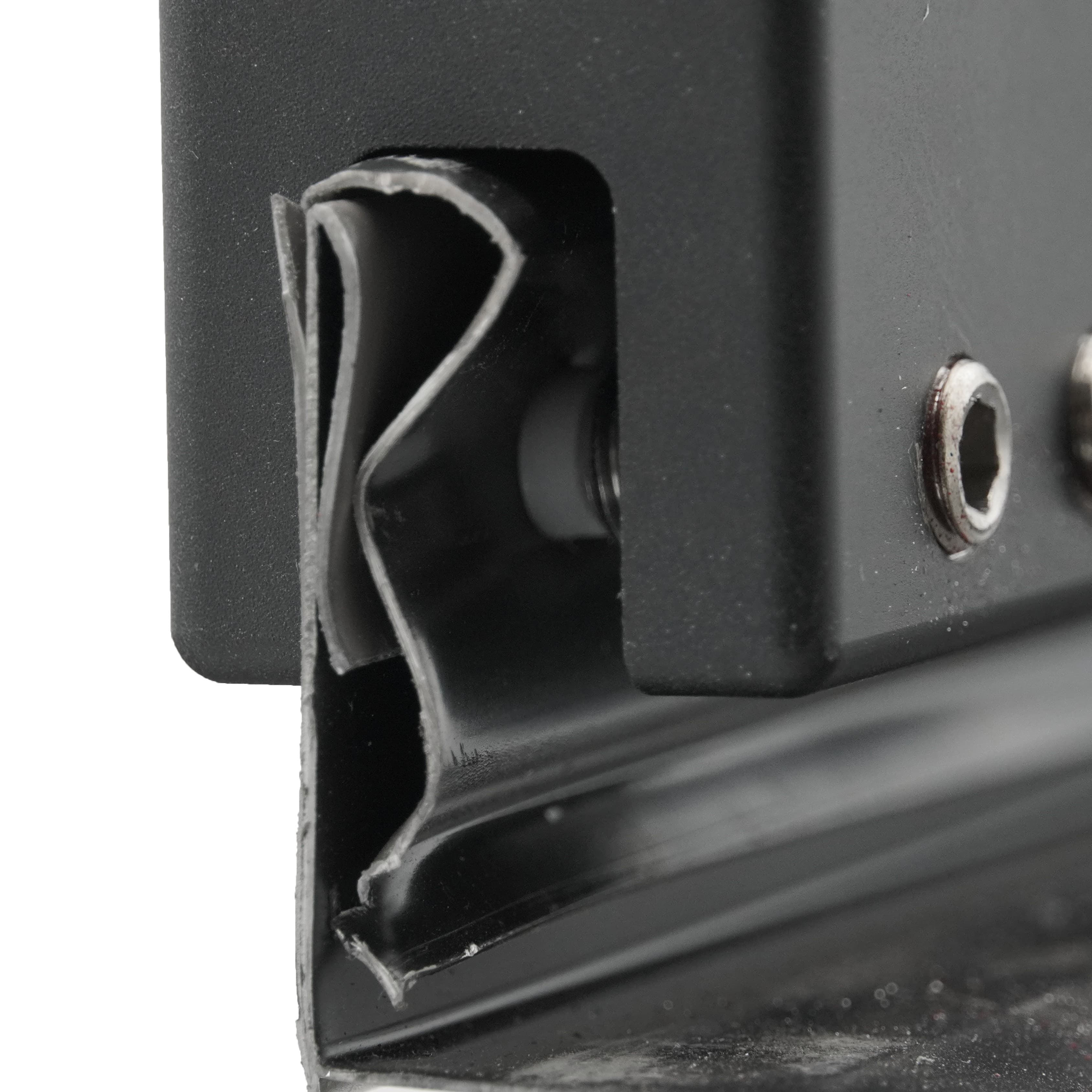

Close-up of the non-penetrating clamp that grips the seam without piercing the panel.

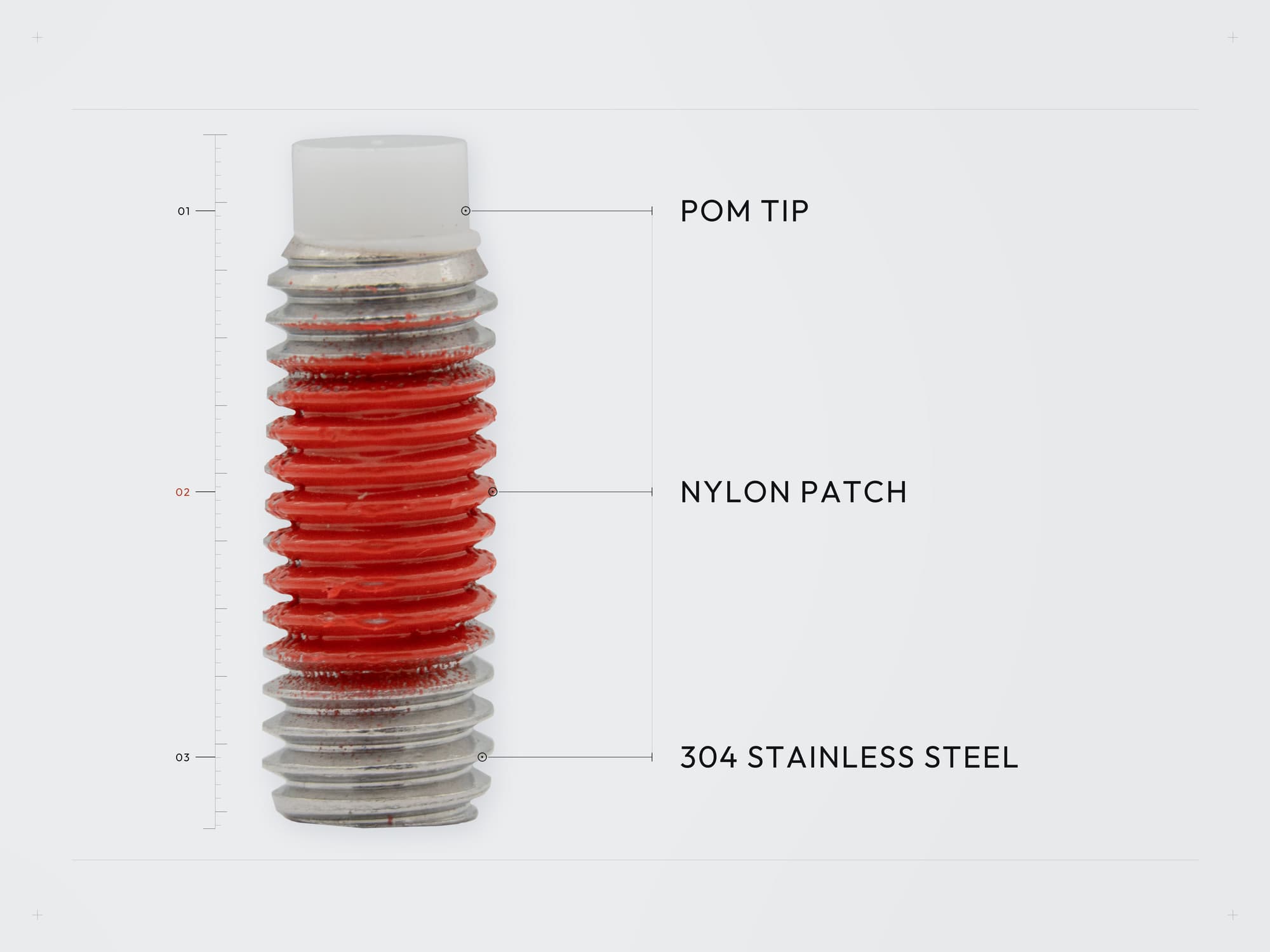

ArcticAnchor POM-tipped fastener with nylon locking patch and 304 stainless steel body, used for non-penetrating standing seam clamp attachment

Non-Penetrating POM Tip

Each clamp locks to the seam with a POM-tipped fastener that grips without piercing the panel, keeping the roof's weathertightness intact.

TitanCore rail flex tested under a 3,000 pound load across an 18 inch span

TitanCore Material Detail

Flex tested under a 3,000 lb load across an 18 in span, TitanCore returns to shape once the load is released.

ArcticAnchor friction fit rail joiner connecting two rail sections without adhesive

Friction Fit Rail Joiners

Rail joiners and end caps use a friction fit design that locks securely without adhesive, keeping installation simple and connections reliable over time.

Compatibility

Compatible Standing Seam Profiles

ArcticAnchor™ clamp systems are designed to fit a range of standing seam panel profiles. Exact fit depends on seam height, spacing, and panel manufacturer.

A full compatible-profile list is in development. Contact our technical support team to confirm fit for your specific panel before ordering, or submit a panel through our free panel testing program.

Project-specific review may be required. ArcticAnchor™ products are not fall-protection anchors and must not be used as personal tie-off points.
