Exposed Fastener Systems
Snow Retention for Exposed Fastener Metal Roofs
Sealed mechanical stands designed for common screw-down panel profiles, installed with standard tools and familiar fastening methods.
Exposed Fastener Advantages
Why Roofers Choose This System
- Waterproofing Built In
Each stand comes with a 2.5mm butyl strip bonded to the base. Under fastening load, it compresses to seal the entire contact area against water entry.
- Built-In Ice Stoppers
The stand geometry includes an integrated ice stop, so every bracket helps catch and break up sliding snow and ice without adding a separate component.
- 7x Lighter than Steel
The entire system is built from TitanCore, ArcticAnchor™'s engineered polymer, making it roughly 7 times lighter than comparable steel hardware for easier handling and faster installs.
- Full System Color Matching
Every stand, cap, and bracket in the system can be color matched to your panel, so the finished install blends into the roof instead of standing out.

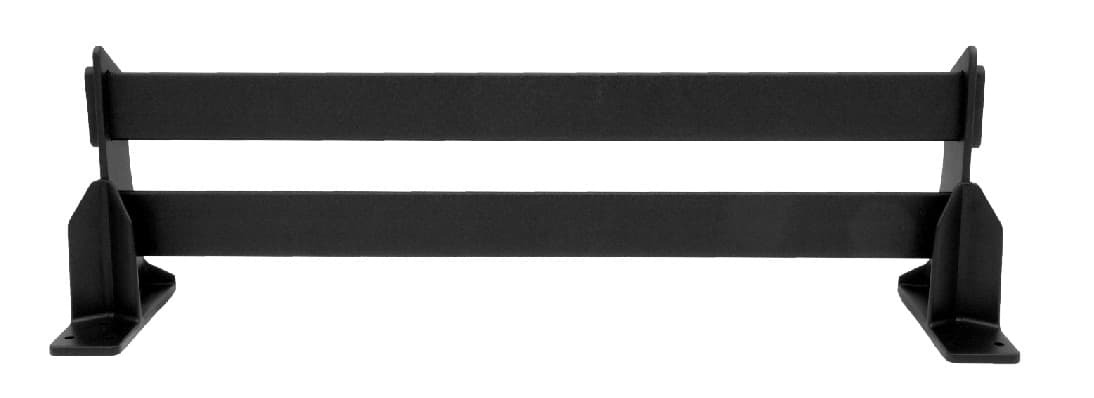

Complete System
The Full Exposed Fastener System, Assembled
A complete Exposed Fastener Rail Series run, showing the stand-to-stand assembly along the eave.
Exposed Fastener Details
Built-In Details That Make the Difference
A closer look at the details engineered into the Exposed Fastener system, added here as photos come in from the product team.

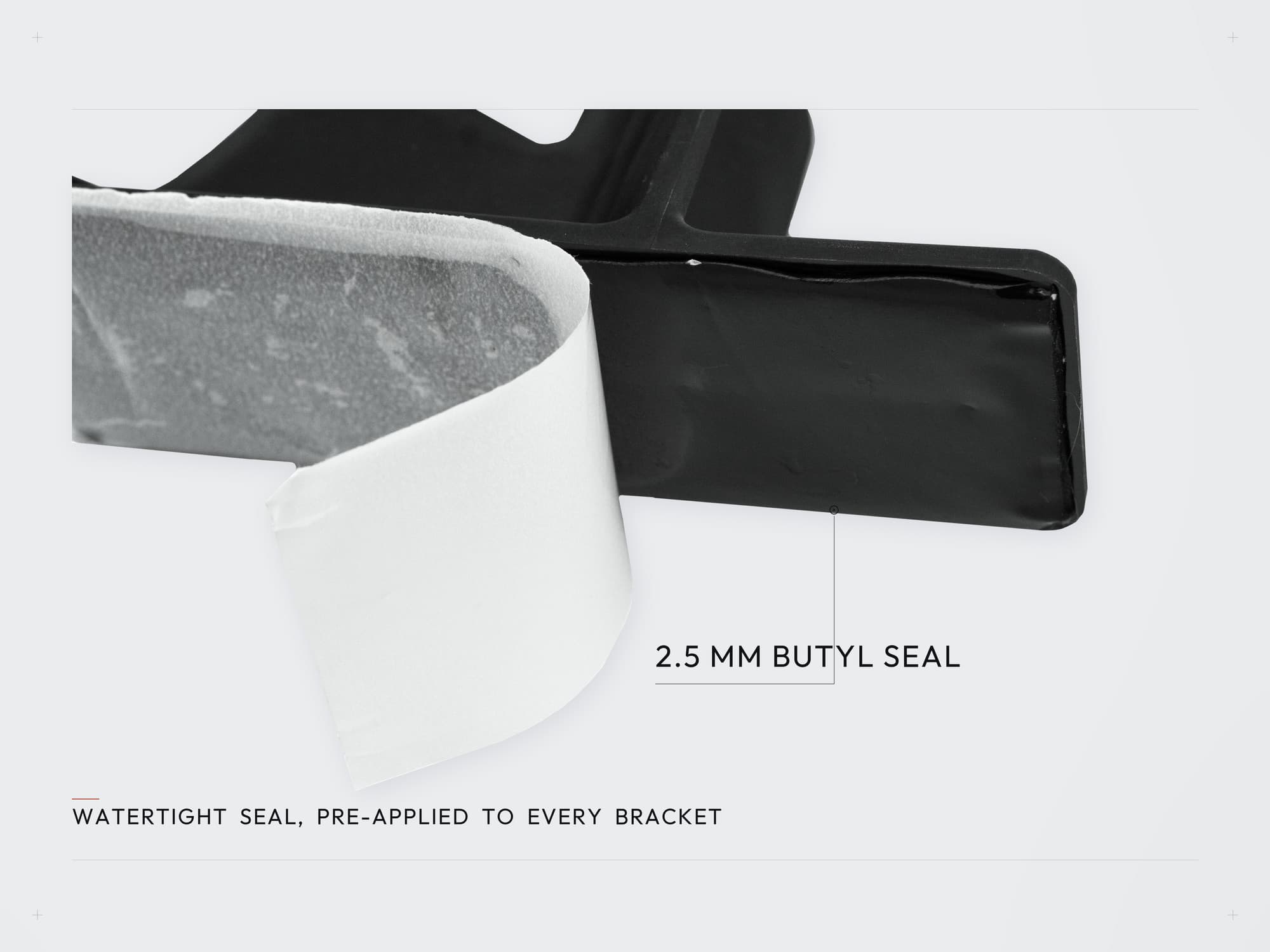

Sealed Fastener Detail
Each stand ships with a 2.5mm butyl strip preapplied to the base, so the seal is built in before the stand ever reaches the roof.

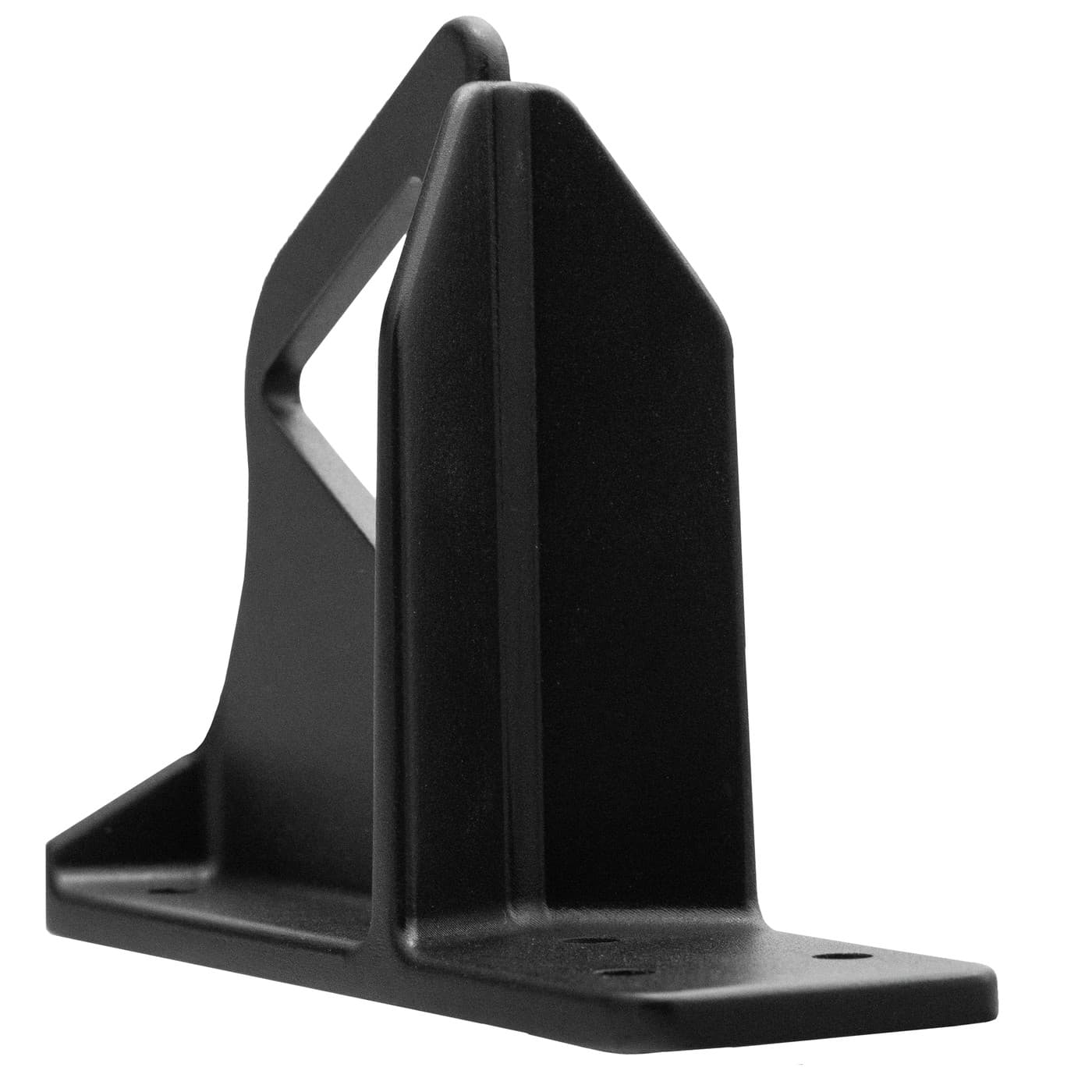

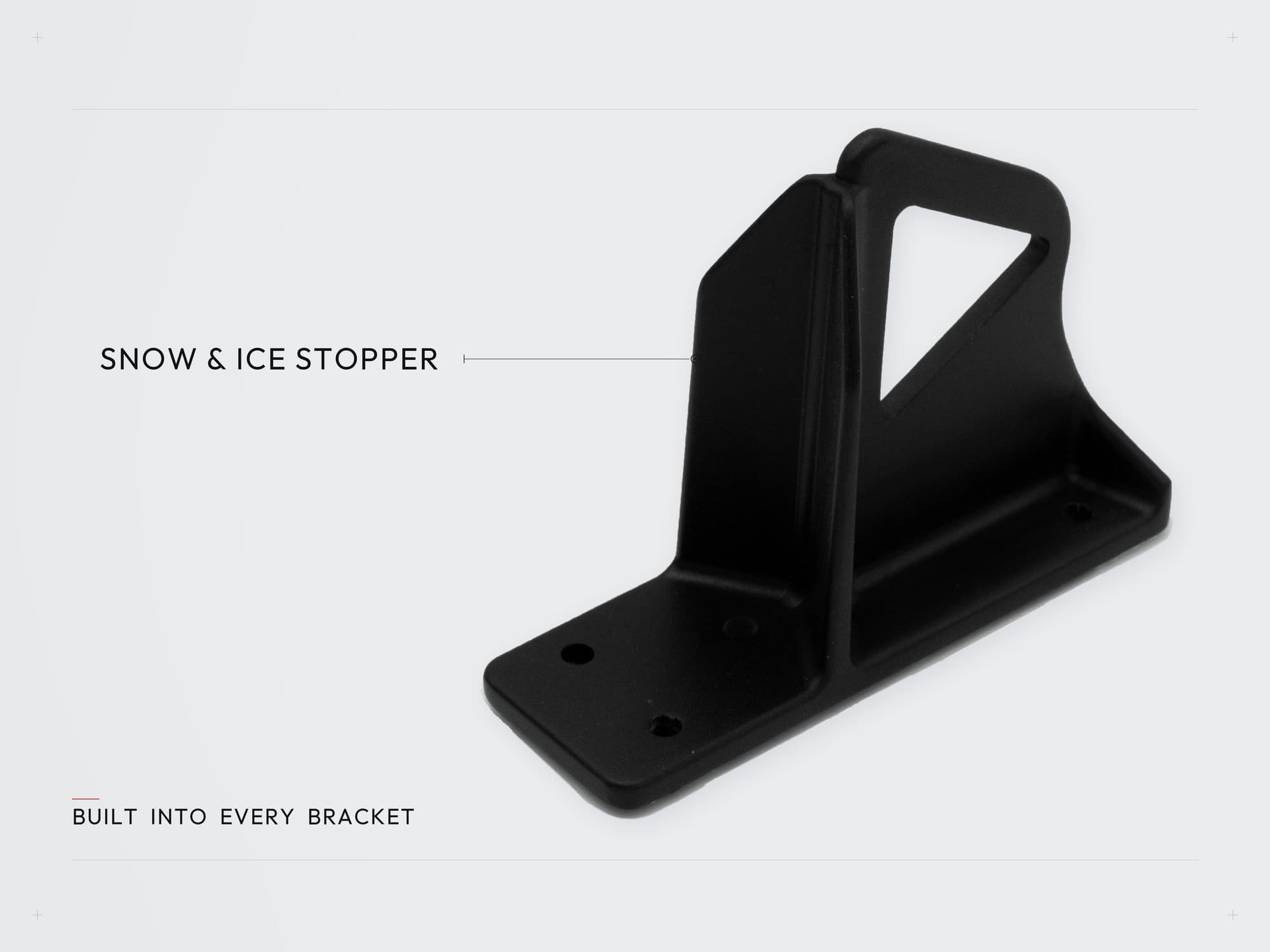

Stand Profile
The stand geometry includes an integrated ice stop molded directly into the base, built to catch and break up sliding snow and ice without a separate add-on part.

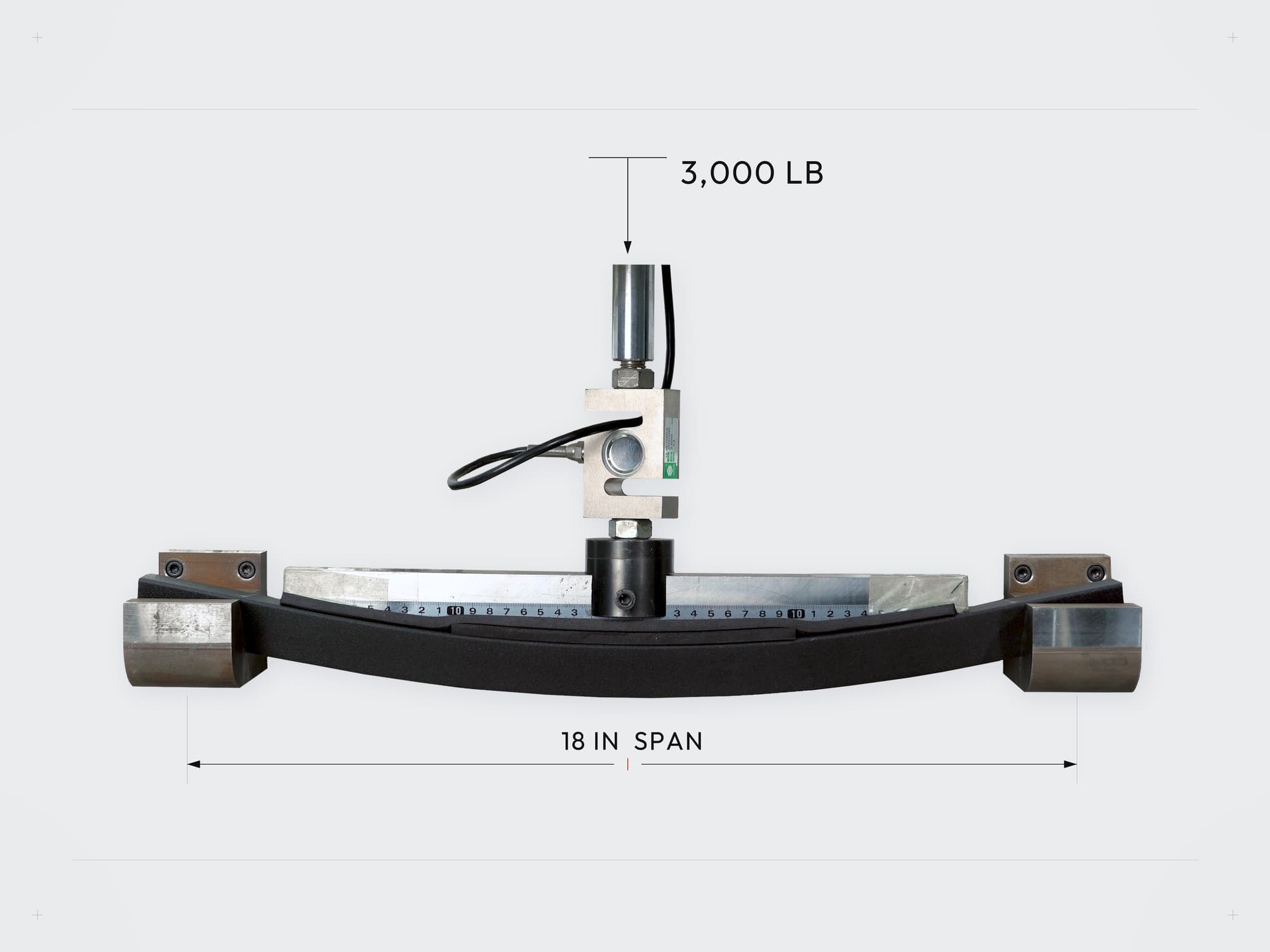

TitanCore Material Detail
Flex tested under a 3,000 lb load across an 18 in span, TitanCore returns to shape once the load is released.

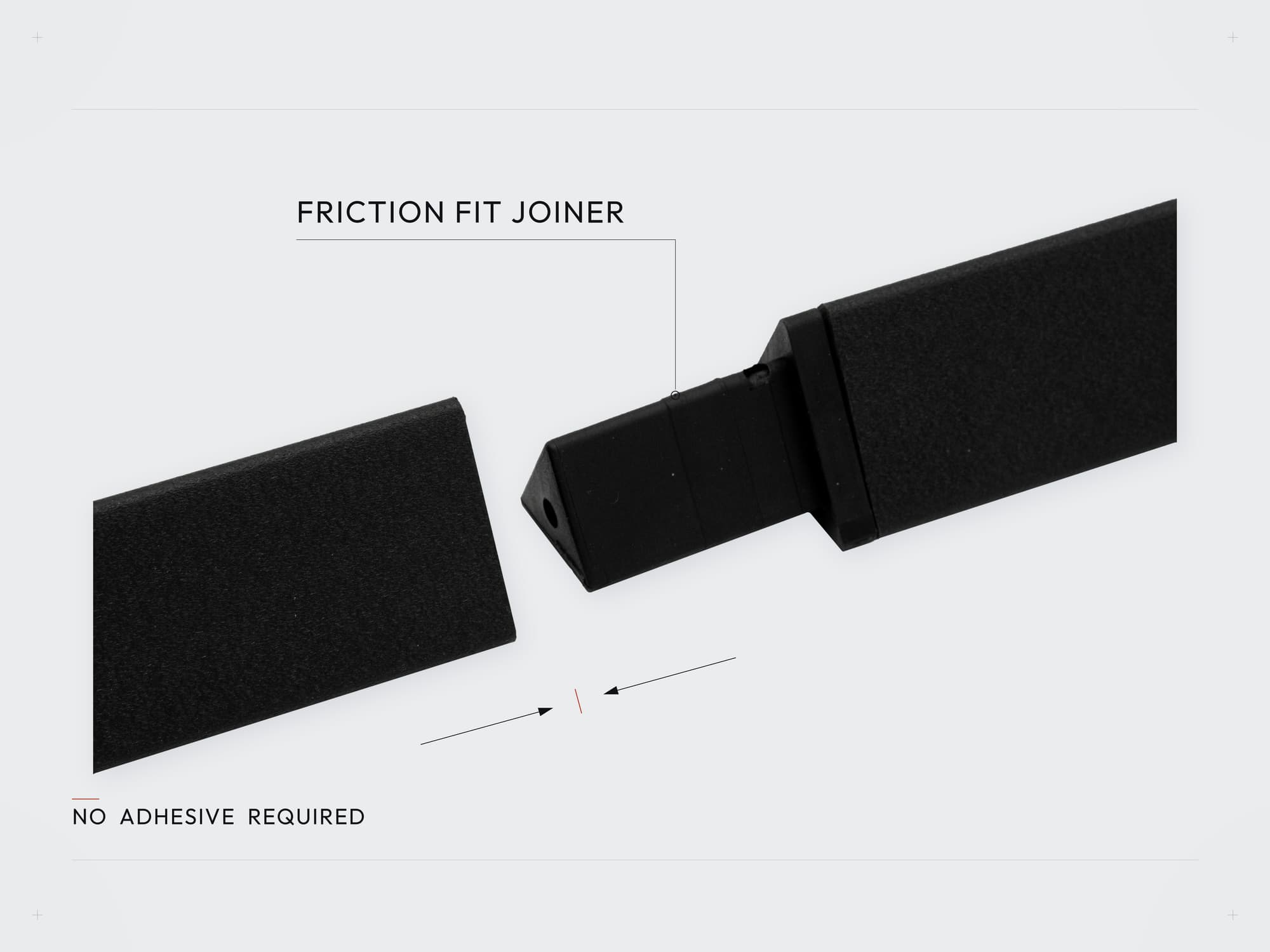

Friction Fit Rail Joiners
Rail joiners and end caps use a friction fit design that locks securely without adhesive, keeping installation simple and connections reliable over time.
Compatibility
Compatible Exposed Fastener Profiles
ArcticAnchor™ exposed fastener stands are designed to fit a range of common screw-down panel profiles. Exact fit depends on rib spacing and panel manufacturer.
Single rail brackets clear ribs up to 1-1/4 in. Double rail brackets clear ribs up to 2 in.
A full compatible-profile list is in development. Contact our technical support team to confirm fit for your specific panel before ordering, or submit a panel through our free panel testing program.
Project-specific review may be required. ArcticAnchor™ products are not fall-protection anchors and must not be used as personal tie-off points.
Installation
Install It Right the First Time
Choose the format that works best on the job, a printable step-by-step PDF or a full video walkthrough.
PDF Installation Guide
Step-by-step written instructions with diagrams, torque specs, and layout guidance you can print or take on the roof.
View PDF GuideVideo Walkthrough
A full installation walkthrough on video, for crews who want to see the system installed start to finish before they get on the roof.
Coming SoonTested to perform
Backed by In-House and Independent Testing
ArcticAnchor™ components are evaluated under controlled testing conditions to support product development and system guidance.
